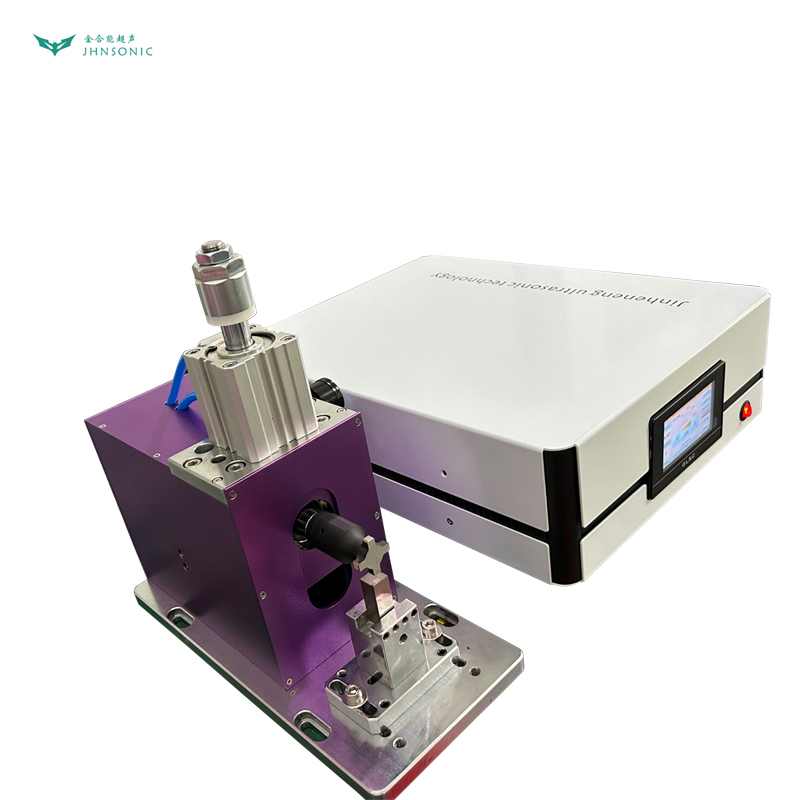

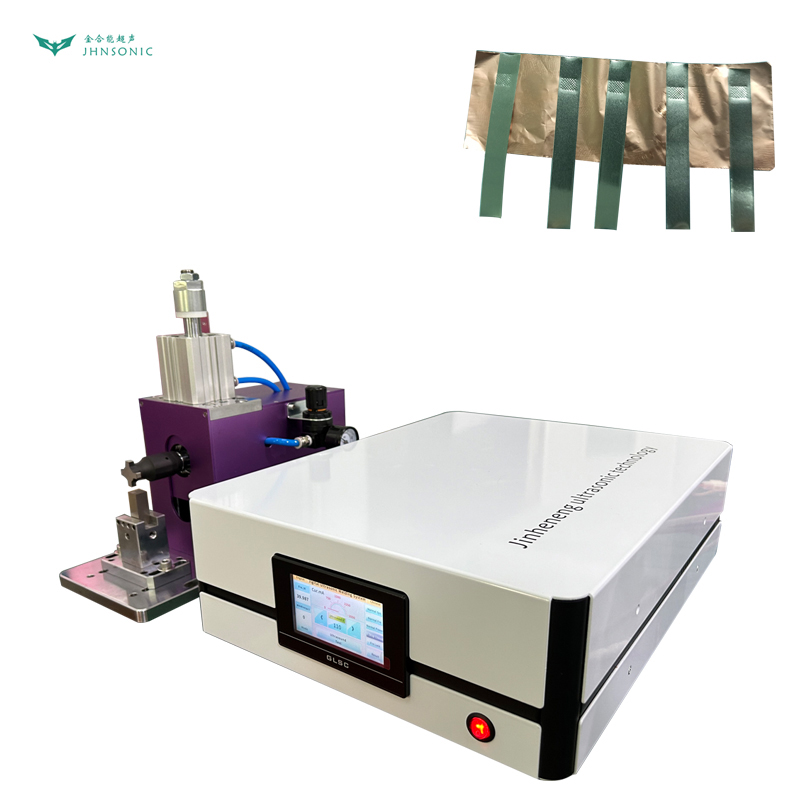

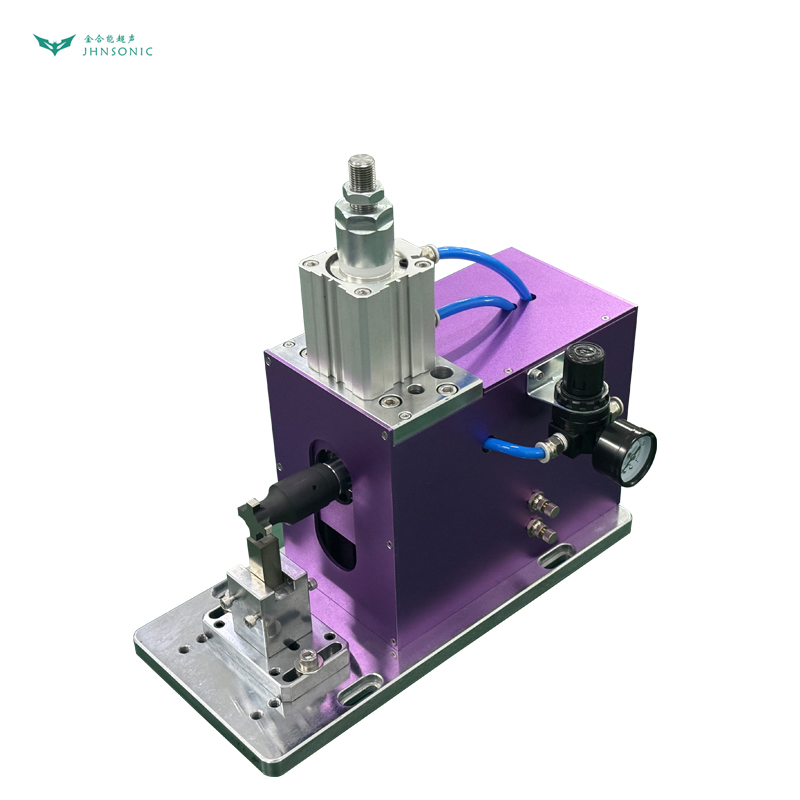

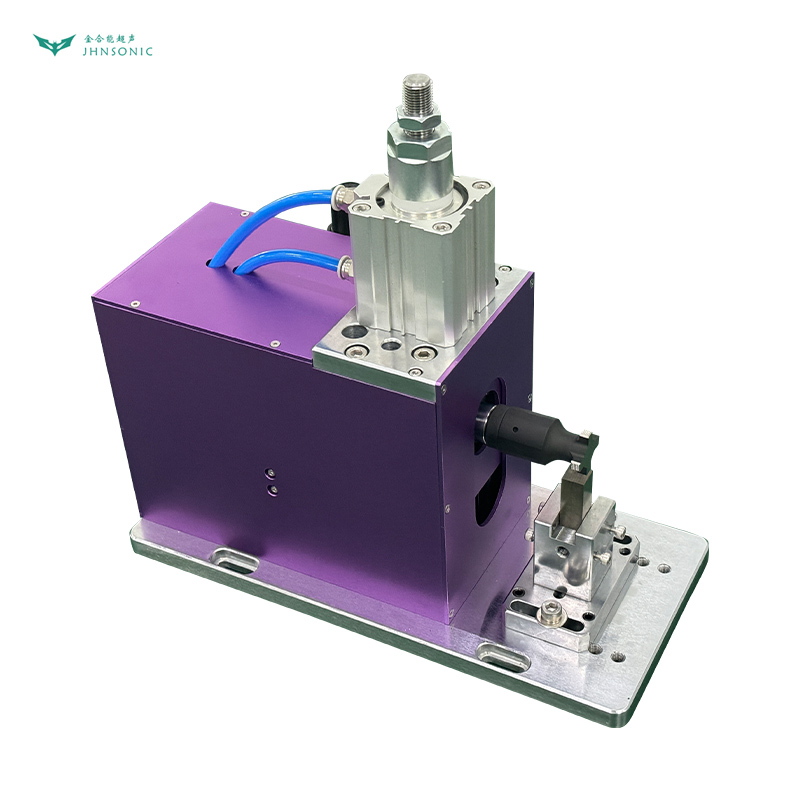

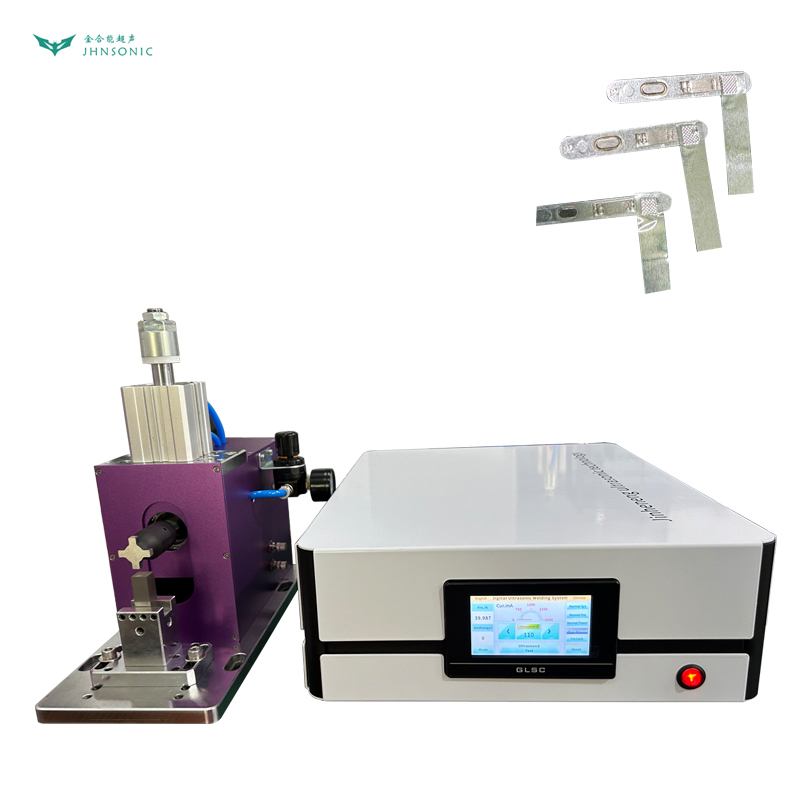

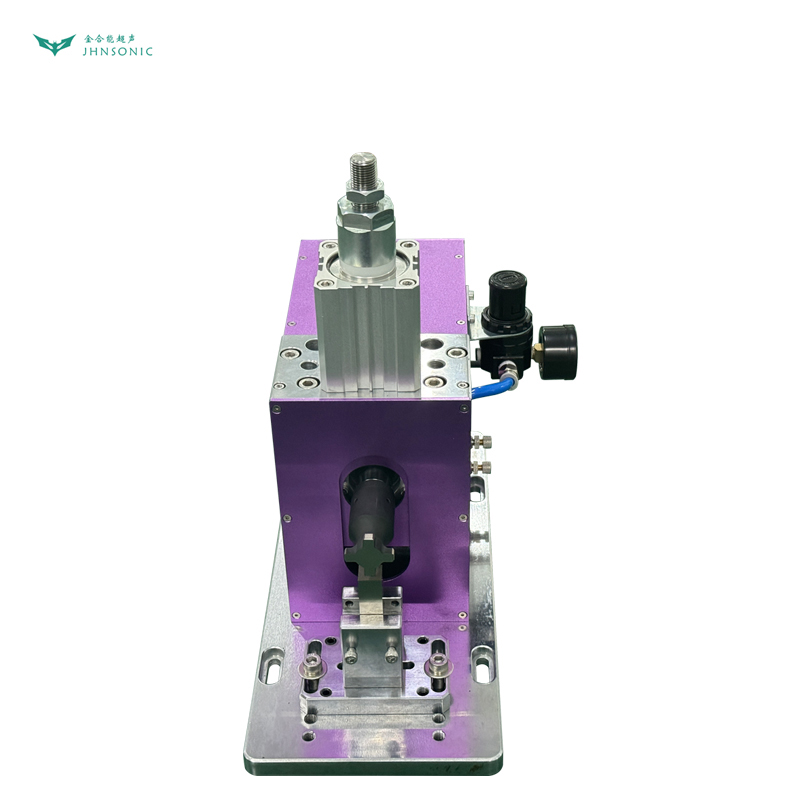

Máquina de soldadura ultrasónica de metales 4010 para soldadura de láminas de cobre y níquel

Nombre de la marca
JHN
Número de modelo
JHN4010
Artículo de pago
T/T,WesternUnion,Paypal
Precio Artículo
EXW, DDP, DAP
Tiempo de entrega
Alrededor de 30 días
Detalles de empaquetado
Caja de madera
Lugar de origen
Guangzhou,China
Tiempo de entrega
Obtener el último precio
Get the latest price
Quantity Needed:
Pieces
E-mail:
2050 Rack rosa con cilindro incorporado, chasis frontal azul, 0,2 mm de níquel ...
2060-1 (4000-5500 W) máquina de soldadura ultrasónica de metales, soldadora ul...
Máquina de soldadura ultrasónica de alambre cuadrado 2042-2 para mazos de cabl...
Applicable   IndustriesMachinery Repair Shops, Manufacturing Plant, Lithium battery manufacturer
Showroom LocationNone
Video outgoing-inspectionNot Available
Machinery Test ReportNot Available
Marketing TypeHot Product
Warranty of core components1 Year
Core ComponentsPLC,bearing,Pressure vessel
ConditionNew
Place of OriginGuangdong, China
Warranty1 Year
Key Selling PointsCompetitive Price
Weight (KG)45KG
Max. Welding Thickness2
UsageLithium battery welding
Voltage220V
Power (kw)1000W
Ultrasonic power1000W-3000W
Ultrasonic frequency40KHz
Object of actionMetal
Mechanical typeUltrasonic welding machine
After sales service providedOnline guidance Video support


Product Features:

1. Using siemens programmable controller, the time can be accurate to milliseconds;

2. Advanced constant voltage vibration sub-circuit technology, with time, power, energy, etc.

3. The welding is firm, no welding, no cracking, no vibration, good residual area.


Product   modelUltrasonicfrequencyUltrasonic   powerDimension(cm)Process range
JHN401040KHz1000W60X75X50cmBattery factory
Product   nameUltrasonic metal welding machine
Product No.JHN4010
ApplicationBattery cover plate
Core   ComponentsCircuit + transducer mold
Net weight30kg
Welding   materials typesAluminum, nickel, copper
Manual or   automatic weldingManual, can be equipped with the automatic line to realize the automatic function
Head colorPurple
Air cylinderOn top of the head
Welding headCan be replaced
Welding   materialsCan weld 0.3mm-0.5mm wires, also with 0.6mm copper foil
Controller   size55cmx45cmx20cm
Welder size50cmx35cmx45cm
Total size60cmx75cmx50cm
Net weight30KG
Gross weight45KG


Package and delivery:

1. Standard exported package : Internal anti-collision protection, external export wooden box packaging.

2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3. Responsible for the damage during the shipping process, will change the damage part for you for free.
